Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
60kΩ
Model Number:

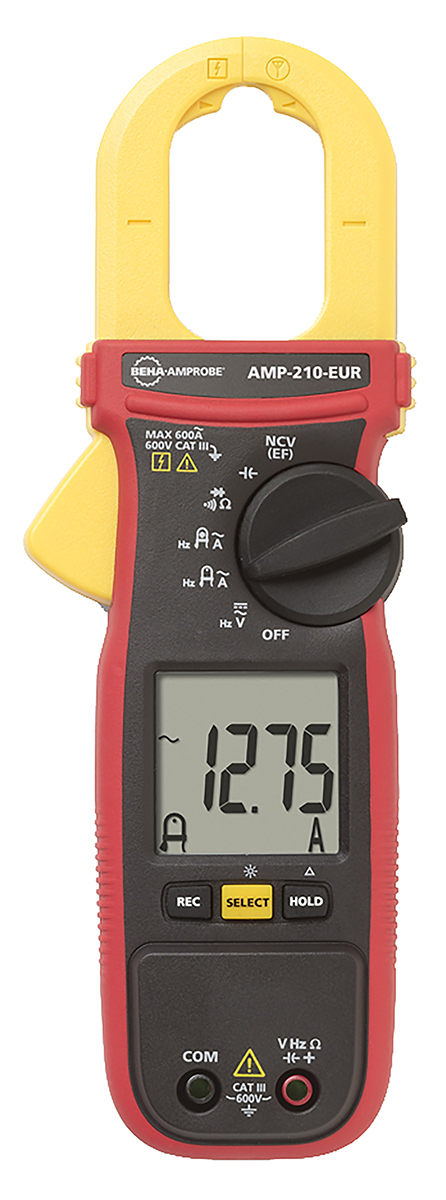

AMP 210
Clamp Meter Type:
AC Current Clamp Meter
Best AC Current Accuracy:
±(1.8% rdg + 5dgts)
Best AC Voltage Accuracy:
±(1% rdg + 5dgts)
Jaw Capacity Busbars:
30mm
True RMS:
Yes
Functions Measured:
AC Current, AC Voltage, DC Voltage, Resistance, Temperature
Best DC Voltage Accuracy:
±(1% rdg + 5dgts)
Height:
37mm
Minimum Operating Temperature:
0°C
Dimensions:
219 x 77 x 37mm
Length:
219mm
Width:
77mm
Non-Contact Voltage Detector:
Yes
Power Source:
Battery
Safety Category Level:
CAT III
Maximum Conductor Size:
30mm
Weight:
208g
Best Resistance Measurement Accuracy:
±1 % + 5LSD
Safety Category:
CAT III 600 V
Maximum Operating Temperature:
+40°C
Display Type:
LCD
Battery Type:
AAA
Safety Category Voltage:
600V
