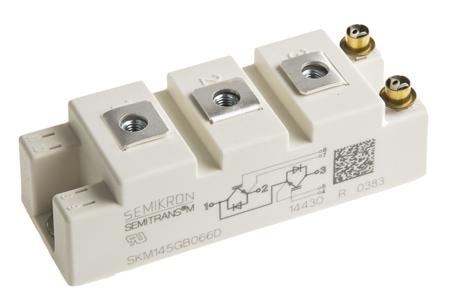

Semikron Danfoss SKM145GB066D Dual Half Bridge IGBT Module, 195 A 600 V, 7-Pin SEMITRANS2, Panel Mount

Semikron Danfoss SKM145GB066D Dual Half Bridge IGBT Module, 195 A 600 V, 7-Pin SEMITRANS2, Panel Mount

Manufacturer:

Manufacturer Part No:

SKM145GB066D

Enrgtech Part No:

ET14014397

Warranty:

Manufacturer

JOD 95.12

Checking for live stock

Maximum Continuous Collector Current:

195 A

Maximum Collector Emitter Voltage:

600 V

Maximum Gate Emitter Voltage:

±20V

Package Type:

SEMITRANS2

Configuration:

Dual Half Bridge

Mounting Type:

Panel Mount

Channel Type:

Pin Count:

Transistor Configuration:

Series

Dimensions:

94 x 34 x 29.5mm

Maximum Operating Temperature:

+175 °C

Minimum Operating Temperature:

-40 °C

0900766b805c1e92.pdf(datasheets)

0900766b814fb915.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
