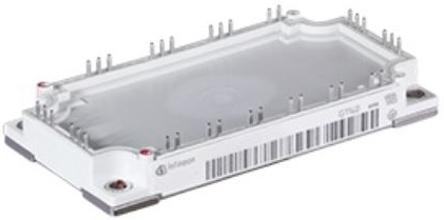

Infineon FS100R12KT4GBOSA1 3 Phase Bridge IGBT Module, 100 A 1200 V AG-ECONO3-4, Panel Mount

Infineon FS100R12KT4GBOSA1 3 Phase Bridge IGBT Module, 100 A 1200 V AG-ECONO3-4, Panel Mount

Manufacturer:

Manufacturer Part No:

FS100R12KT4GBOSA1

Enrgtech Part No:

ET16792836

Warranty:

Manufacturer

JOD 62.97

Checking for live stock

Maximum Continuous Collector Current:

100 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

515 W

Configuration:

3 Phase Bridge

Package Type:

AG-ECONO3-4

Mounting Type:

Panel Mount

Channel Type:

Transistor Configuration:

3 Phase

Dimensions:

122 x 62 x 17mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+150 °C

0900766b814de167.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
