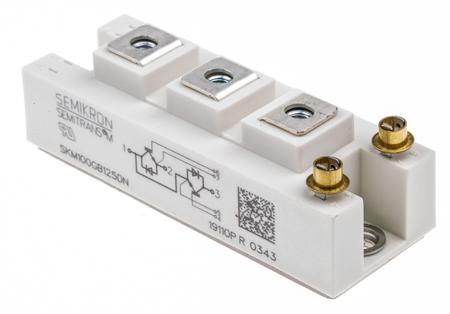

Semikron Danfoss SKM100GB125DN Dual Half Bridge IGBT Module, 100 A 1200 V, 7-Pin SEMITRANS2, Panel Mount

Semikron Danfoss SKM100GB125DN Dual Half Bridge IGBT Module, 100 A 1200 V, 7-Pin SEMITRANS2, Panel Mount

Manufacturer:

Manufacturer Part No:

SKM100GB125DN

Enrgtech Part No:

ET16801729

Warranty:

Manufacturer

JOD 186.93

Checking for live stock

Maximum Continuous Collector Current:

100 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Configuration:

Dual Half Bridge

Package Type:

SEMITRANS2

Mounting Type:

Panel Mount

Channel Type:

Pin Count:

Transistor Configuration:

Series

Dimensions:

94.5 x 34.5 x 30.5mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+150 °C

0900766b8032bd48.pdf(datasheets)

0900766b814fb915.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
