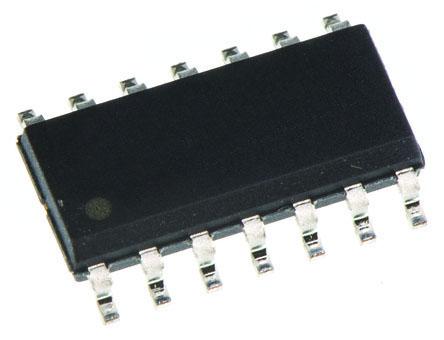

Texas Instruments SN7404D Hex Inverter, 14-Pin SOIC

Manufacturer:

Manufacturer Part No:

SN7404D

Enrgtech Part No:

ET100484021

Warranty:

Manufacturer

JOD 1.80

Checking for live stock

Logic Function:

Inverter

Number of Elements per Chip:

Schmitt Trigger Input:

Maximum Propagation Delay Time @ Maximum CL:

22 ns @ 5 V

Maximum High Level Output Current:

-0.4mA

Maximum Low Level Output Current:

16mA

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

Logic Family:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=80571&DisplayLogo=False

Dimensions:

8.65 x 3.91 x 1.58mm

Maximum Operating Supply Voltage:

5.25 V

0900766b81644fd1.pdf(datasheets)
