Multimeter Type:
Handheld
Display Type:
Digital

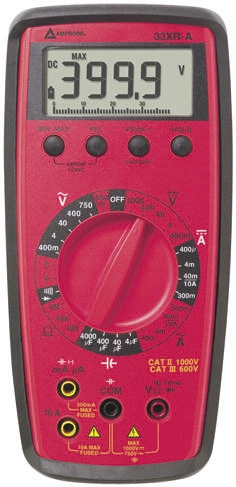

Model Number p:
33XRA
Calibrated:
UKAS
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
4MΩ
Absolute Maximum Capacitance Measurement:
4mF
Absolute Maximum Temperature Measurement:
+1000°C
True RMS:
No
Maximum Frequency:
500Hz
AC Current Measurement Resolution:
0.1µA ac
DC Current Measurement Resolution:
0.1µA dc
DC Voltage Measurement Resolution:
100µV dc
AC Voltage Measurement Resolution:
100µV ac
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
100nF
Temperature Measurement Resolution:
1°C
Safety Category Level:
CAT II, CAT III
Best DC Current Accuracy:
±2% + 3 Digits
Height:
60mm
Width:
92mm
Best AC Current Accuracy:
±2.5% + 4 Digits
Length:
196mm
Best AC Voltage Accuracy:
±2% + 4 Digits
Minimum Operating Temperature:
0°C
Weight:
400g
Safety Category Voltage:
600 V, 1000V
Battery Type:
9V
Maximum Operating Temperature:
+45°C
Best Capacitance Measurement Accuracy:
±5% + 15 Digits
Best Resistance Measurement Accuracy:
±1.2% + 4 Digits
Best DC Voltage Accuracy:
±0.7% + 1 Digit
Best Temperature Measurement Accuracy:
±3% + 2 °C
Dimensions:
196 x 92 x 60mm
