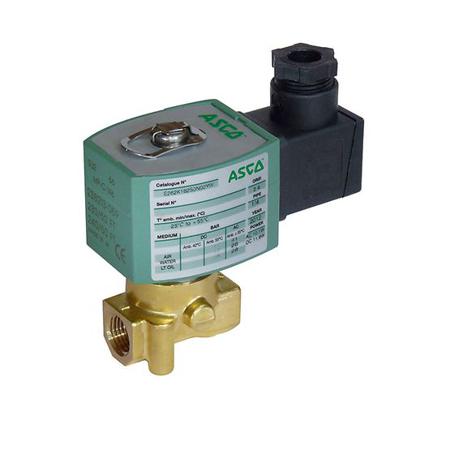

EMERSON – ASCO Solenoid Valve E262K232S1N00FL, 2 Port, NO 1/4 in, 24 V, 1/4 in

EMERSON ? ASCO E262K232S1N00FL EMERSON – ASCO Solenoid Valve E262K232S1N00FL, 2 Port, NO 1/4 in, 24 V, 1/4 in

Manufacturer:
Manufacturer Part No:
E262K232S1N00FL
Enrgtech Part No:
ET28430191
Warranty:
Manufacturer
JOD 111.14 JOD 111.14
Checking for live stock
Supply Voltage:
24 V
Product Type:
Solenoid Valve
Number of Ports:
2
Inlet Port Size:
1/4 in
Outlet Port Size:
1/4 in
Default Valve Position:
NO
Inlet Connection Type:
Threaded
Inlet Thread Standard:
ISO 228/1 and ISO 7/1
Outlet Connection Type:
Threaded
Orifice Diameter:
3.2mm
Inlet Port Gender:
Male
Body Material:
Brass
Application:
High Pressure Fluid
Series:
262
Outlet Port Gender:
Male
Maximum Operating Pressure:
23 bar
Outlet Thread Standard:
ISO 228/1 and ISO 7/1
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
80°C
Servo Assist:
No
Standards/Approvals:
EN 60529, IEC 335, UL, WRAS, RoHS, CSA, EN 175301-803
Hazardous Area Certification:
UL, IECEx, ATEX Directive 2014/34/EU, CSA
Maximum Closing Time:
25ms
Flow Factor Kv:
5L/min
Maximum Opening Time:
25ms
