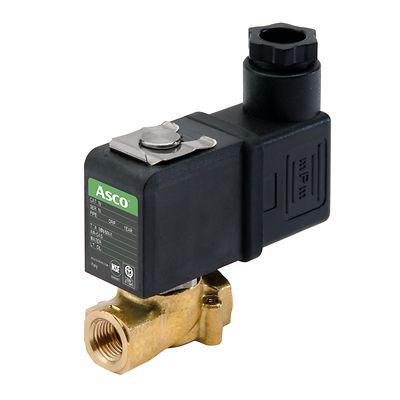

EMERSON – ASCO Direct Operated Solenoid Valve G256C135S1V01F1, 2 Port, NC, 24 V dc 1/8 in, 1/8 in

EMERSON ? ASCO G256C135S1V01F1 EMERSON – ASCO Direct Operated Solenoid Valve G256C135S1V01F1, 2 Port, NC, 24 V dc 1/8 in, 1/8 in

Manufacturer:
Manufacturer Part No:
G256C135S1V01F1
Enrgtech Part No:
ET28434934
Warranty:
Manufacturer
JOD 36.67 JOD 36.67
Checking for live stock
Product Type:
Direct Operated Solenoid Valve
Supply Voltage:
24 V dc
Number of Ports:
2
Inlet Port Size:
1/8 in
Outlet Port Size:
1/8 in
Default Valve Position:
NC
Inlet Connection Type:
Type G
Outlet Connection Type:
Type G
Inlet Thread Standard:
ISO 228/1
Orifice Diameter:
1.6mm
Body Material:
Brass
Series:
G256
Maximum Operating Pressure:
12 bar
Outlet Thread Standard:
ISO 228/1
Minimum Operating Temperature:
-10°C
Maximum Operating Temperature:
60°C
Standards/Approvals:
NSF 169, IEC 335, UL429, EC 1935/2004, EN 60335, EN 60529
Hazardous Area Certification:
No
Flow Factor Kv:
0.48m³/h
