Supply Voltage:
24 V dc

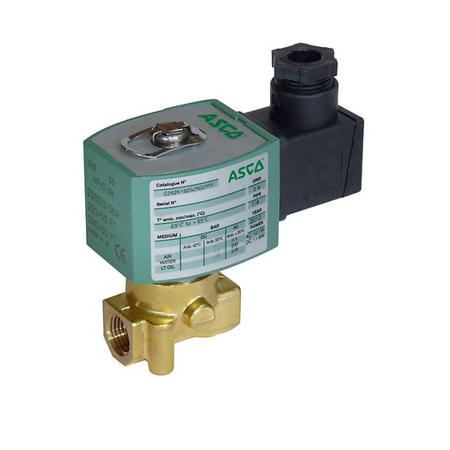

Product Type:
Solenoid Valve
Number of Ports:
2
Inlet Port Size:
1/8 in (NPT Downstream pipe tap mentioned)
Default Valve Position:
NC
Inlet Connection Type:
Threaded
Inlet Thread Standard:
NPT
Orifice Diameter:
5.6mm
Body Material:
Brass
Application:
Industrial Water Control, Pressure Filling Application, Laundry Equipment, Calibration Testing, Pumps, Hydrogen, Furnace Applications, Air Compressor, Gas Engine, Petroleum Vending, Component Testing, District Heating, Packaged Burner, Dust Collector System, Product Cycle Testing, Boiler Application, Car Wash
Series:
E262
Inlet Port Gender:
Female
Outlet Port Gender:
Female
Minimum Operating Temperature:
-25°C
Maximum Operating Pressure:
6.5 bar
Maximum Operating Temperature:
80°C
Standards/Approvals:
ISO/CETOP and ISO/VDMA Standards, Satisfies all relevant EC Directives, CE Approval According to Pressure Equipment Directive 2014/68/E modules B1+D, ATEX 94/9/EC
Servo Assist:
Yes
Hazardous Area Certification:
global hazardous area ratings, Explosion proof operators, intended for use in potential explosive areas, Div 1, According to Directive ATEX 94/9/EC
Maximum Closing Time:
25ms
Maximum Opening Time:
25ms
